Study Guide: Bridges

Main Lesson Page Requirements

1. Title: Bridges
2. Summary: Using your class notes, write a summary of the engineering challenges and solutions in bridge building. Challenges to consider include:
   • Design and cost limitations
   • Intended usage constraints
   • Wind and vibration
   • Weight and strength vs. flexibility
   • Length and height of span
   • Construction logistics (availability of skills, equipment and supplies)
   • Environmental constraints (terrain, access, weather, etc.)
   • Material fatigue vs. intended lifetime usefulness
3. Illustration: Draw one of the bridges we study, and label key elements of it’s design that demonstrate how engineers solve common bridge building challenges.

Types of arch bridges

Parts of a Bridge

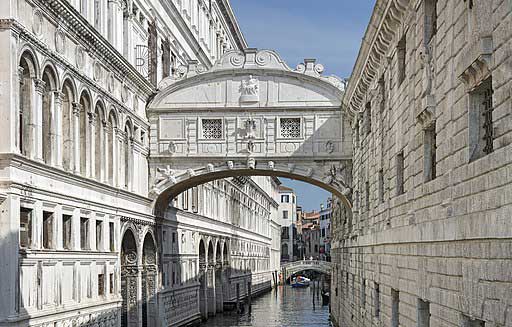

Bridge of Sighs

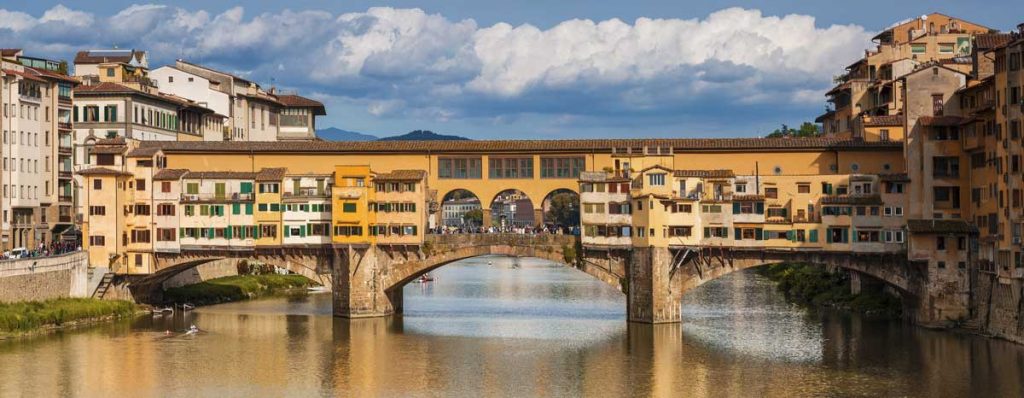

Ponte Vecchio Bridge, Florence

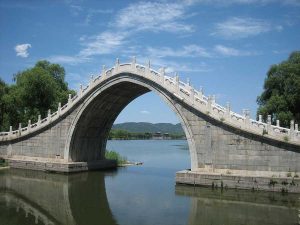

Gaoliang Bridge (Arch)

William Williams painting of an Iron Bridge

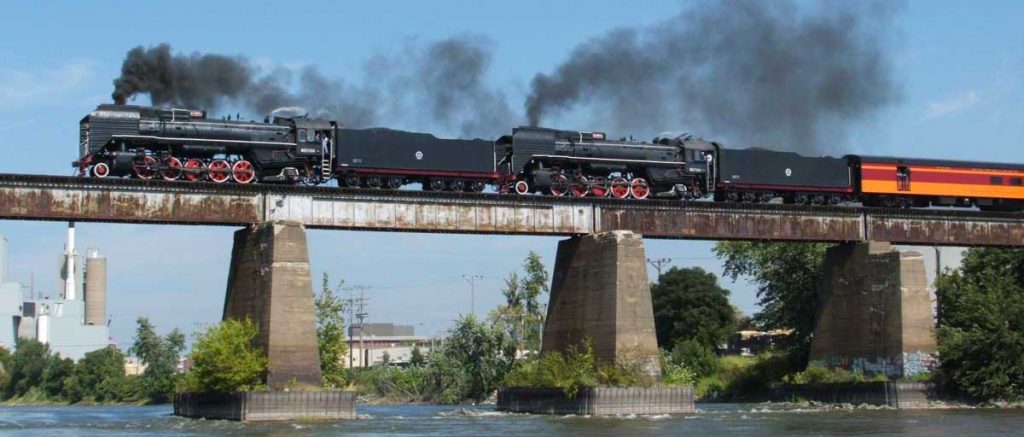

Iowa River Bridge

Golden Gate Bridge (Suspension)

Suspension Bridge

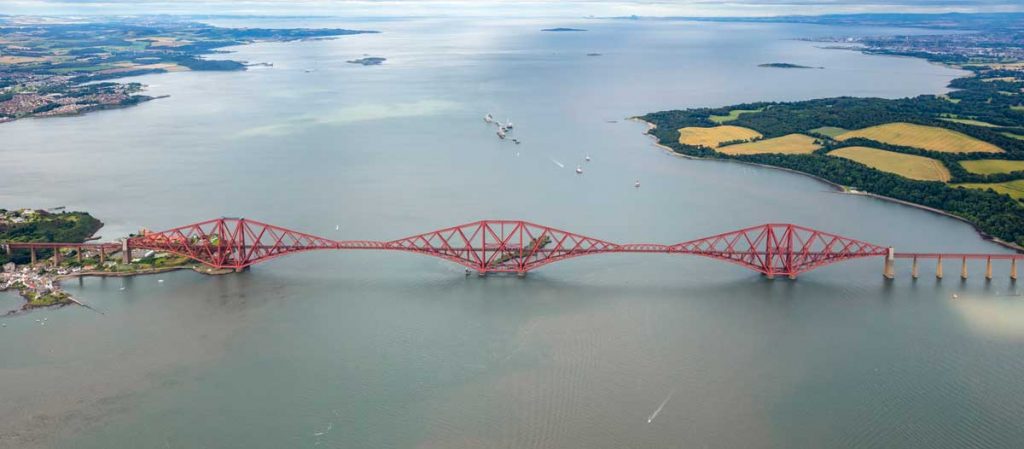

Cantilever Bridge

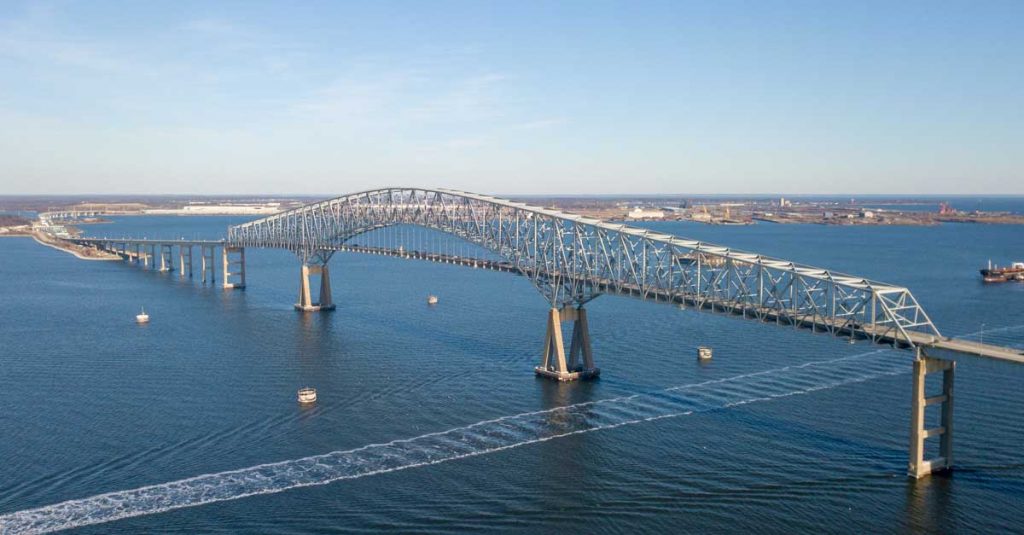

Francis Scott Key Bridge

Suspension-Beam Bridge

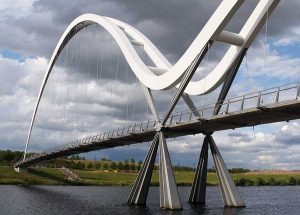

Infinity Bridge (Suspension)

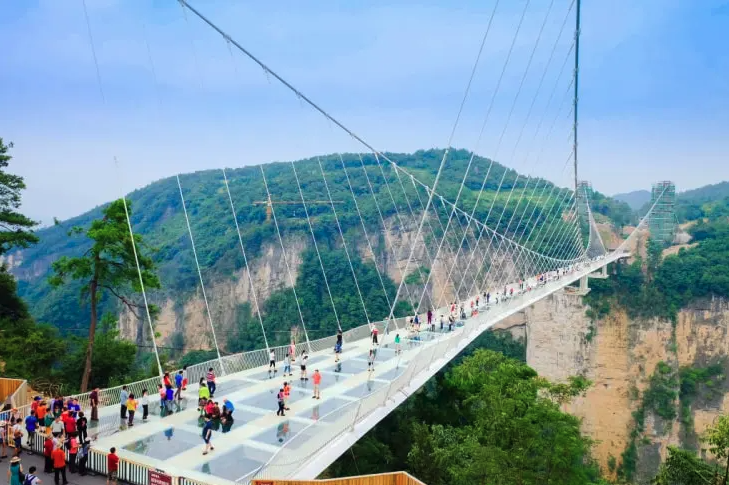

Zhangjiajie Glass Bridge

Sources

• https://www.engineeringclicks.com/famous-bridges/
• https://www.engineeringclicks.com/main-parts-of-a-bridge/
• https://www.engineeringclicks.com/types-of-bridges/
